KF556C40BBA-16
16GB 2G x 64-Bit
DDR5-5600 CL40 288-Pin DIMM
DESCRIPTION

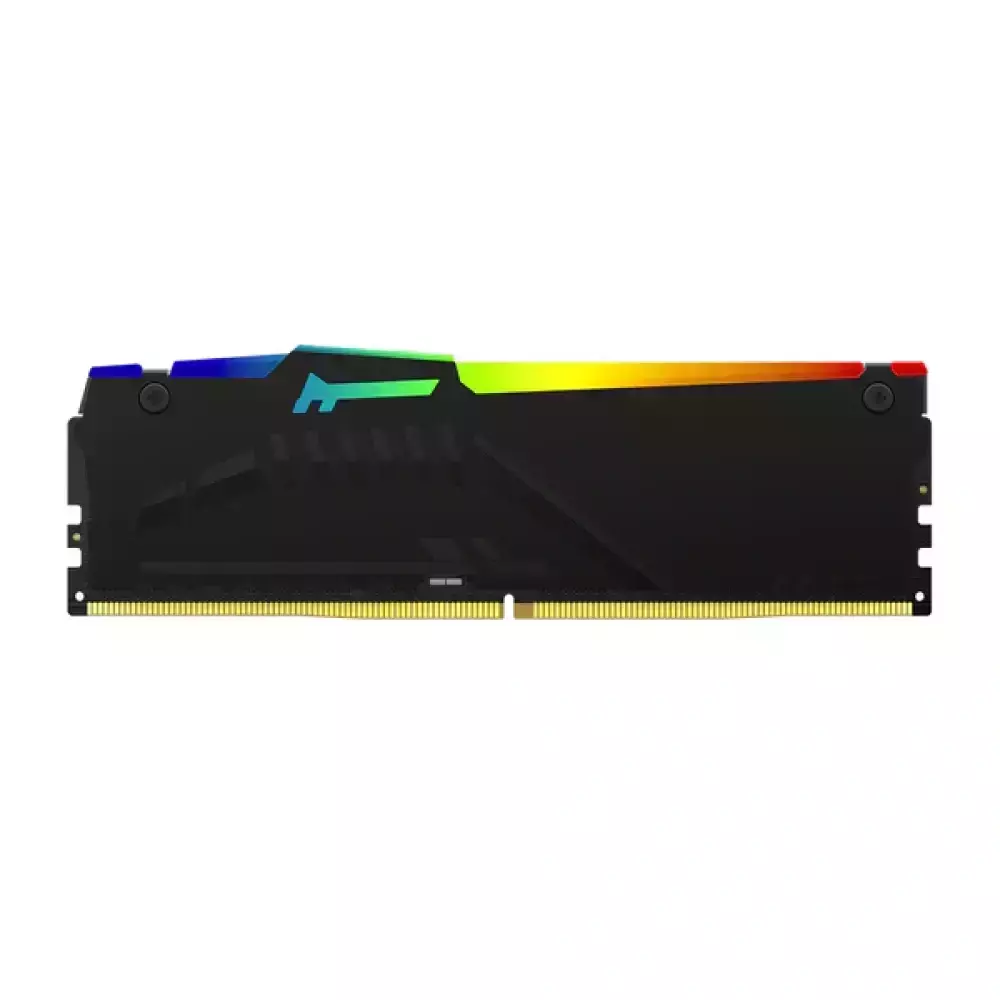

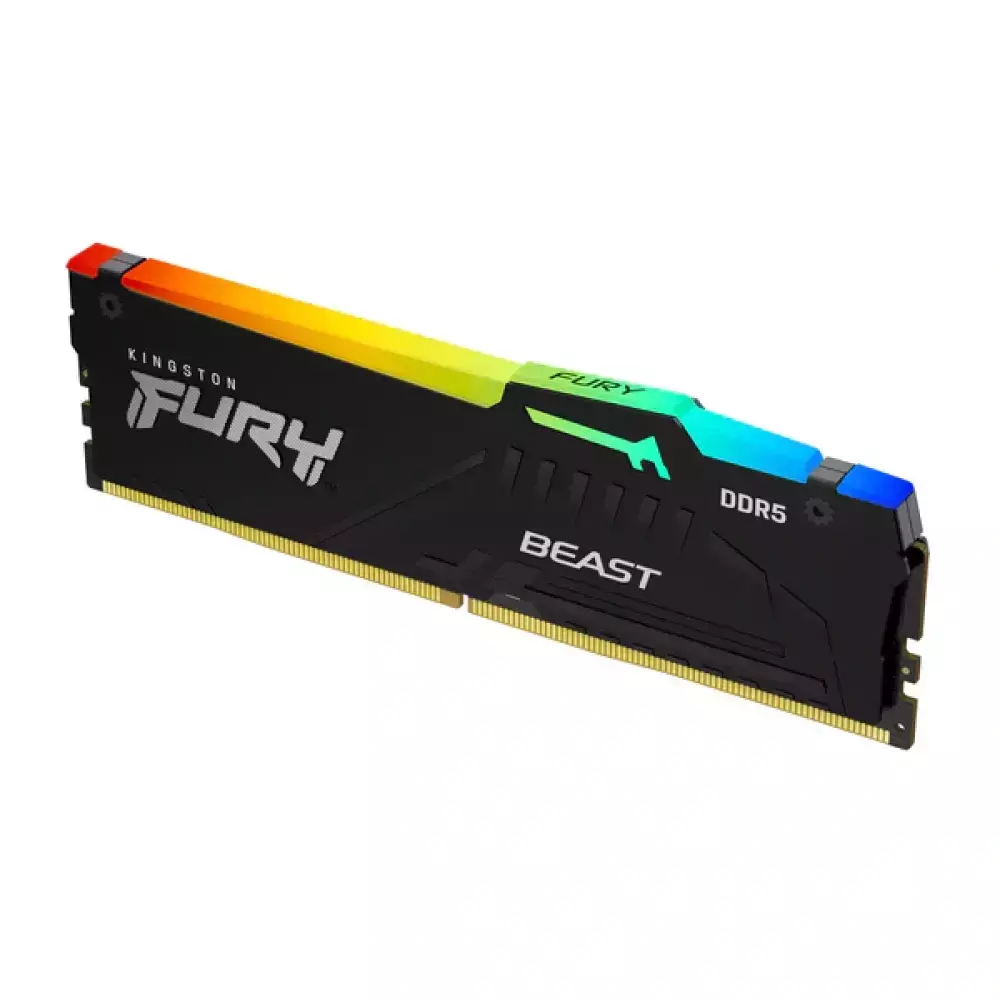

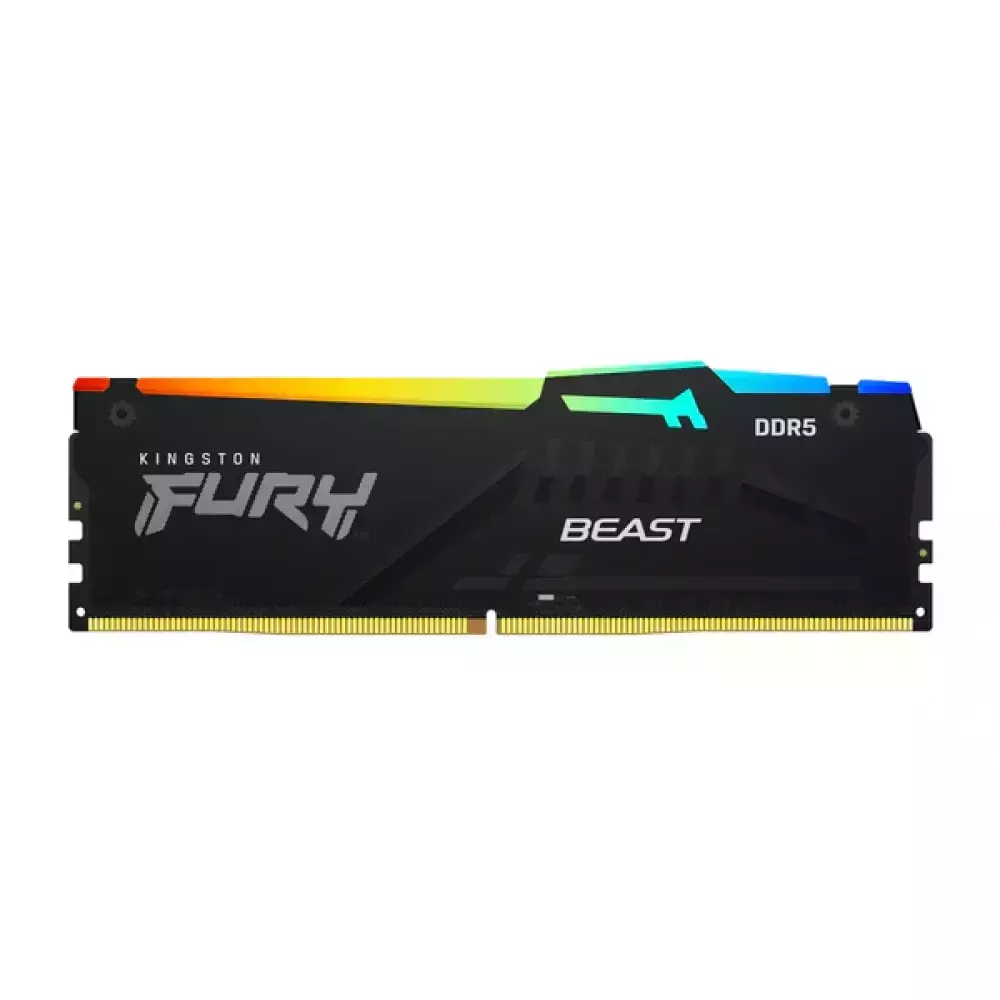

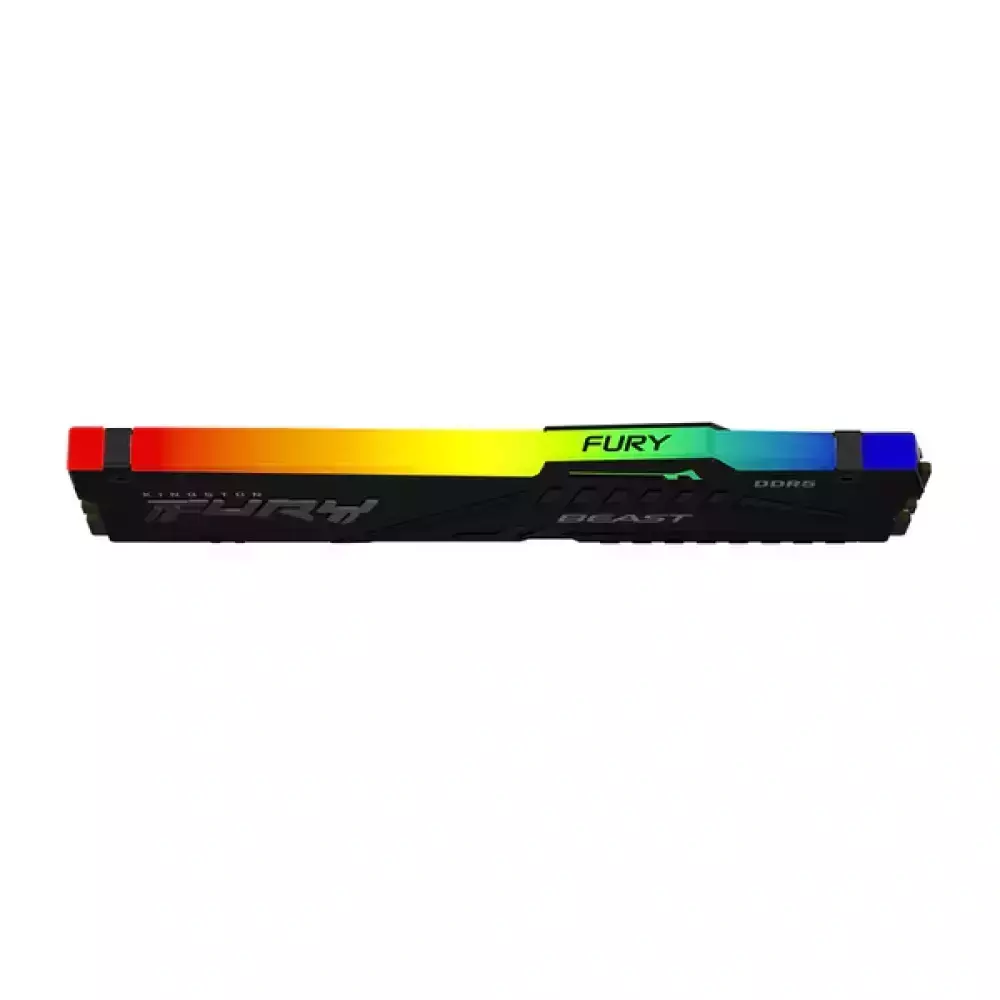

Kingston FURY KF556C40BBA-16 is a 2G x 64-bit (16GB)
DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module.
The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
SPECIFICATIONS
CL(IDD): 40 cycles
Row Cycle Time (tRCmin): 48ns(min.)
Refresh to Active/Refresh: 295ns(min.)
Command Time (tRFCmin)
Row Active Time (tRASmin): 32ns(min.)
UL Rating: 94 V - 0
